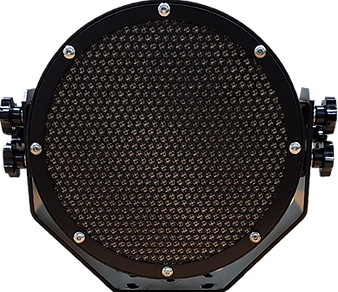

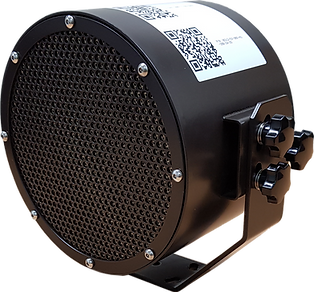

EX-880M / 330M
BOLD EX series smallest size!
Compressed directional speaker model derived from the EX-880 / 330 model
Obtained IP67!
ACOUSTIC PERFORMANCE
-
Maximum Peak Output
-
Frequency Response
-
Sound Projection
-
Communication Ranges
SPL: 141 / 137dB @ 1m, C-Weighted
350Hz - 7.0kHz
+/- 12.5 Degrees at 1kHz/-3dB
Above 1,500m / Above 1,000m
AMPLIFIER RECOMMENDATIONS
-
CLASS-D; CLASS-AB
RMS 300W / RMS 150W
ENVIRONMENTAL PERFORMANCE
-
Hot Operating Temperature
-
Cold Operating Temperature
-
Hot Storage Temperature
-
Cold Storage Temperature
+ 50 ℃
- 30 ℃
+ 70 ℃
- 40 ℃
MECHANICAL
-
Physical Dimensions
-
Weight
220Ø x 160mm
8.7kg / 6.1kg
CERTIFIED
-
IP67
-
Salt mist cycle(IEC60068-2-52:2010 Severity(2)
